| Operating voltage (VDC) | 4.5~18 |
| Measuring range (mm) | 10.5 |
| Output signal | 40 |
| Operating current (mA) | Digital & Analog |
| Signal range (%F.S) | 5~95 |
| Accuracy (mm) | ±1 |
| Operating temperature (℃) | -40~150 |
Product Introduction

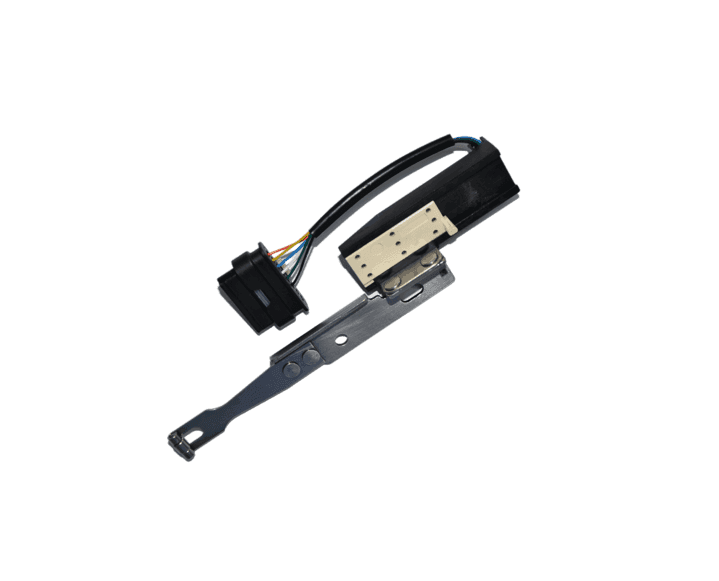

Four bipolar Hall ICs and magnet sliders are used to detect the position of the shift lever P/R/N/D/L, so that it can output four states/bits to the TCU to determine its position. The transmission device is a magnet slider composed of multiple N/S polarity magnets. When the slider moves back and forth, it can change the output of the IC.

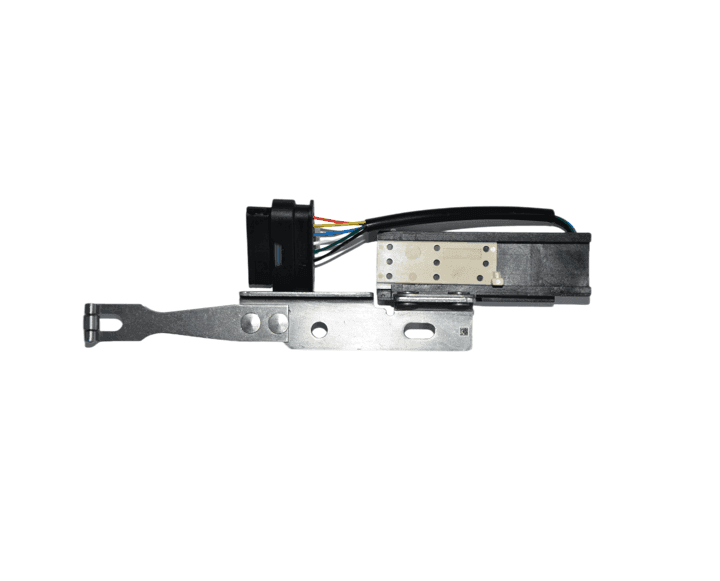

Product Outline Drawing
Product Parameters
Parameter Description |
Features
- High sensitivity, stable action performance Long product service life, 150K cycles The product has high reliability and has passed relevant electrical load, mechanical load, climate load and Chemical environment testing, etc
- Applicable to: Punch gearbox → Geely, Xiaokang, Dongfeng Wanliyang gearbox → Roewe, MG SAIC gearbox → Chery, Geely
