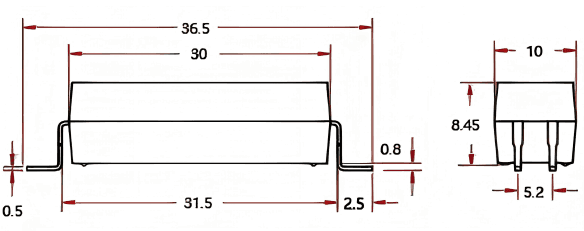

RD-76A Subminiature Reed Switch

Product Introduction

· High withstand voltage Reed Relay

· Contact withstand voltage is higher than 6000V~6500VDC

· The withstand voltage range between contact coils is up to 7000VDC

· High voltage load can be switched to 1500VDC

· High insulation resistance, low contact resistance

· Suitable for testing equipment, medical and other industries

Widely used in photovoltaics, semiconductors, energy storage, medical care, charging piles, automation equipment, base stations and other fields

Parameter Description

Contact parameters and relay characteristics
Maximum Rated Power Max. Rated Power	100W
Max.Switching Voltage	1500VDC
Max.Switching Current	1A
Max. Contact Resistance	150mΩ
Rated load (resistive load) Rated load	10mVDC,10uA 1500VDC,1.5mA
Max capacitance Max capacitance	0.4p^F
Min insulation resistance	10¹⁰Ω
Electrical endurance	100VDC,10mA 10⁸times 1500VDC,1.5mA 5*10⁸times
Contact material Contact materia	Rh rhodium

Contact Form Contact form	Coil parameters
Contact Form Contact form	Rated coil voltage Rated coil voltage	Max coil voltage Max coil voltag	Rated current Rated Current	Coil Resistance Coil Resistance	Operating voltage Pull-In Voltage	Release voltage Drop-Off Voltage	Nominal Coil Power Nominal Coil Power
1A	(VDC)	(VDC)	（mA)	(±10%Ω)	(Vmax)	(Vmin)	(mW)
	5	80	3.5	0.5	313
	12	16	25.2	475	8.4	1.4	303
	24	30	13.3	1800	16	2.9	320
