When the liquid level rises, the floating ball also rises accordingly. Similarly, when the liquid level drops, it also falls accordingly. When it rises or falls to the set position, there is a magnet inside the ball. When the magnet is close to the internal switch due to buoyancy, the contacts in the switch are connected or disconnected. The principle of the switch is that like magnetic poles repel each other and different magnetic poles attract each other. The switch in the liquid level switch controls the corresponding operating mechanism, forming a complete set of circuits.
Product Introduction
Level Sensors are mainly used in the manufacturing and automotive industries, and can also be found in many Home Appliances, such as the ice maker in the refrigerator, the washing machine needs to prevent the liquid level from being too high and excessive water overflowing, the water heater needs to detect that the liquid level in the internal water tank is too low and automatically replenishes water, the toilet needs to keep water in the water tank, etc.

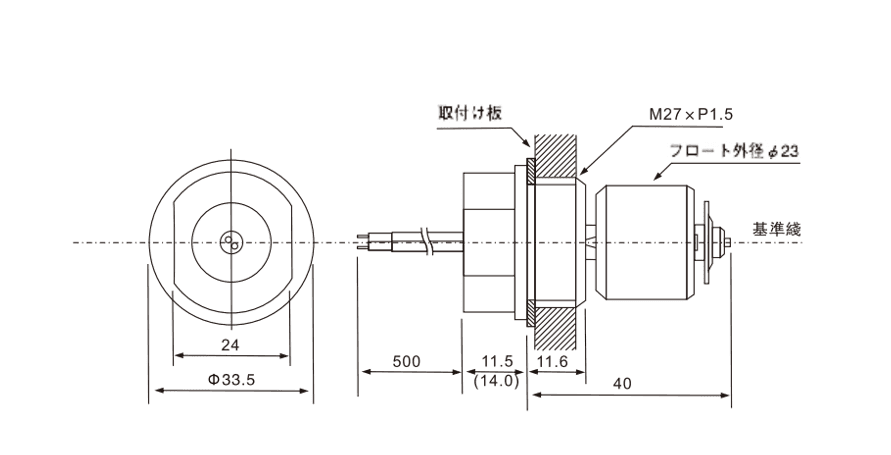

Product Outline Drawing
Product Parameters
| Maximum Glass Tube Length | water, oil |
|---|---|
| Maximum Glass Tube Diameter | Brass, PP |
| Lead Diameter | NBP |
| Contact Form | - |
| Maximum Rated Power | - |
| Maximum Operating Voltage | 10W |
| Maximum Operating Current | 100V |
| Sensitivity Range | 0.25A |
| Detection Length | -30～+150℃ |
| Resistance | OFF-ON |
Features
- Adapt to a variety of liquid environments: normal temperature water, hot water, glass water, urea solution, brake fluid, engine oil and coolant, etc
- Built-in self-made reed switch, stable and reliable performance, high precision, long life Cables, shells, floats, and plugs can be customized to meet customers' individual needs Passed RoHS/REACH certification, has CCC, CE and other certificates, and meets the requirements of intrinsic safety and functional safety (*not applicable to all products)
