Aleph ESL-002/003 Level Sensor
Specifications
| Liquid Used | Water (1.0); Oil (0.88) | |
| Material | Case | Brass Nickel Plated |
| Float | NBR (Foam) | |
| Electrical Characteristics | Maximum Switching Rate | 10W |
| Maximum Switching Voltage | 100V | |
| Maximum Switching Current | 0.25A | |
| Contact Withstand Voltage (DC) | 200V | |
| Contact Resistance | 0.2W max | |
| Temperature Range | -30 to +150°C | |
For oil use, a case made of 6 nylon can also be used. Please contact us.
Dimensions
Dimensions in mm (1mm = 0.0394 inches)

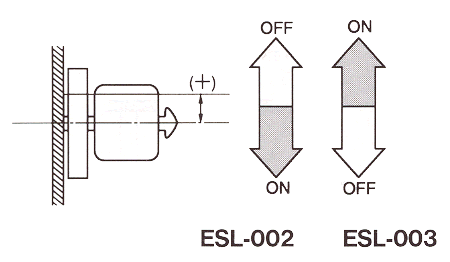

Switching Level
| ESL-002 | ESL-003 | |||
|---|---|---|---|---|
| Water | Oil | Water | Oil | |
| ON | +10.0 max. | +11.5 max. | +1.0 min. | +2.0 min. |
| OFF | +2.0 min. | +3.0 min. | +9.0 max. | +10.5 max. |
