Aleph FS-9521 Level Sensor
Specifications
| Liquid Used | Water (1.0) | |
| Material | Case | SUS 304 |
| Float | SUS 304 | |
| Electrical Characteristics | Maximum Switching Rate | 10W |
| Maximum Switching Voltage | 200V | |
| Maximum Switching Current | 0.25A | |
| Contact Withstand Voltage (DC) | 250V | |
| Contact Resistance | 0.3W max | |
| Temperature Range | -20 to +90°C | |
Dimensions
Dimensions in mm (1mm = 0.0394 inches)

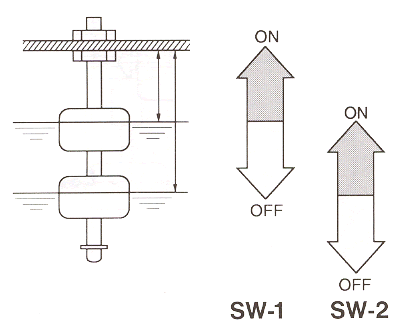

Switching Level
Swithcing Level (mm). When a sensor is mounted upside down, the switching distance is changed. Please contact us for details.
| SW-1 | SW-2 | |
|---|---|---|
| ON | 40.0 min. | 110.0 min. |
| OFF | 60.0 max. | 130.0 max. |
