Aleph HYR-2003-2 – High Power Reed Switch


Item Value
Contact Form 1A
Contact Position1 C
Contact Material Rhodium
Max. Contact Rating 50W
Max. Switching Voltage 200VDC/110VAC
Max. Switching current 1.0A
Max. Initial Contact Resistance 100m Ω
Pull in Value (AT) 20-60
Min. Drop out Value (AT) 8
Min. Breakdown Voltage2 300VDC
Max. Contact Capacitance 0.4pF
Min. Insulation Resistance 109 Ω
Typ. Resonant Frequency 2.5kHz
Electrical Life (Resistive loads) 107 (10mV, 10mA) 2 X 104 (50VDC, 1A)
Features High power
  1. C: Center gap O: Off center gap
  2. Breakdown voltage specifications are based on Pull-In sensitivity of 25 AT or higher. Contact ALEPH for information for switches with less than 25 AT sensitivity.

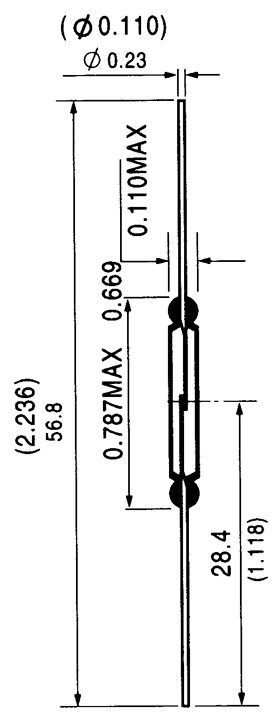

HYR-2003-2 Reed Switch
